Introduction

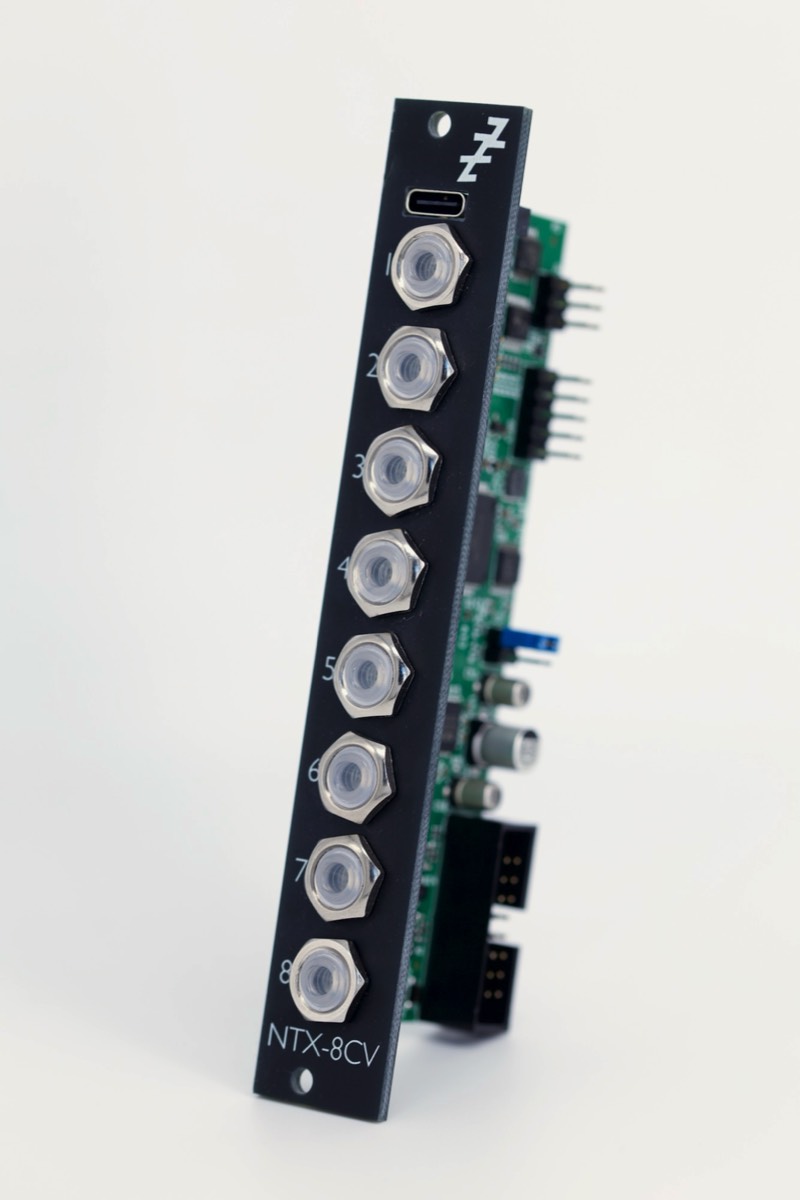

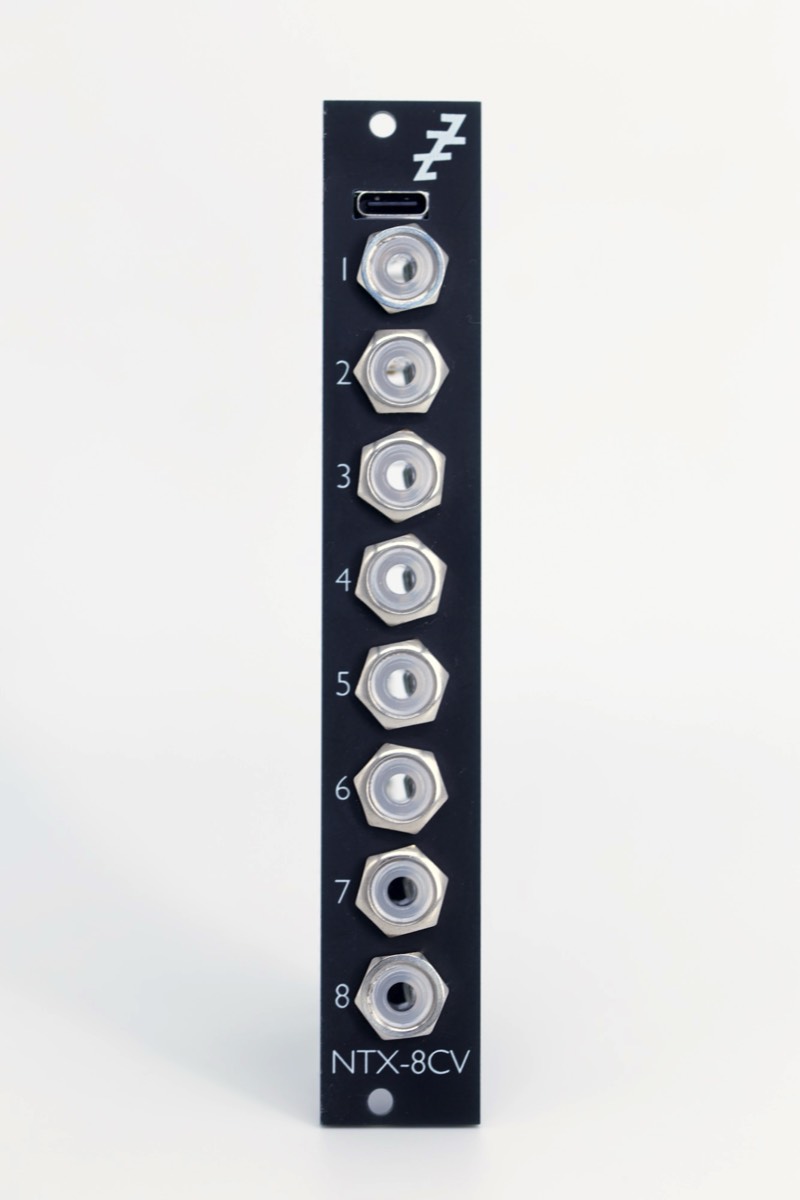

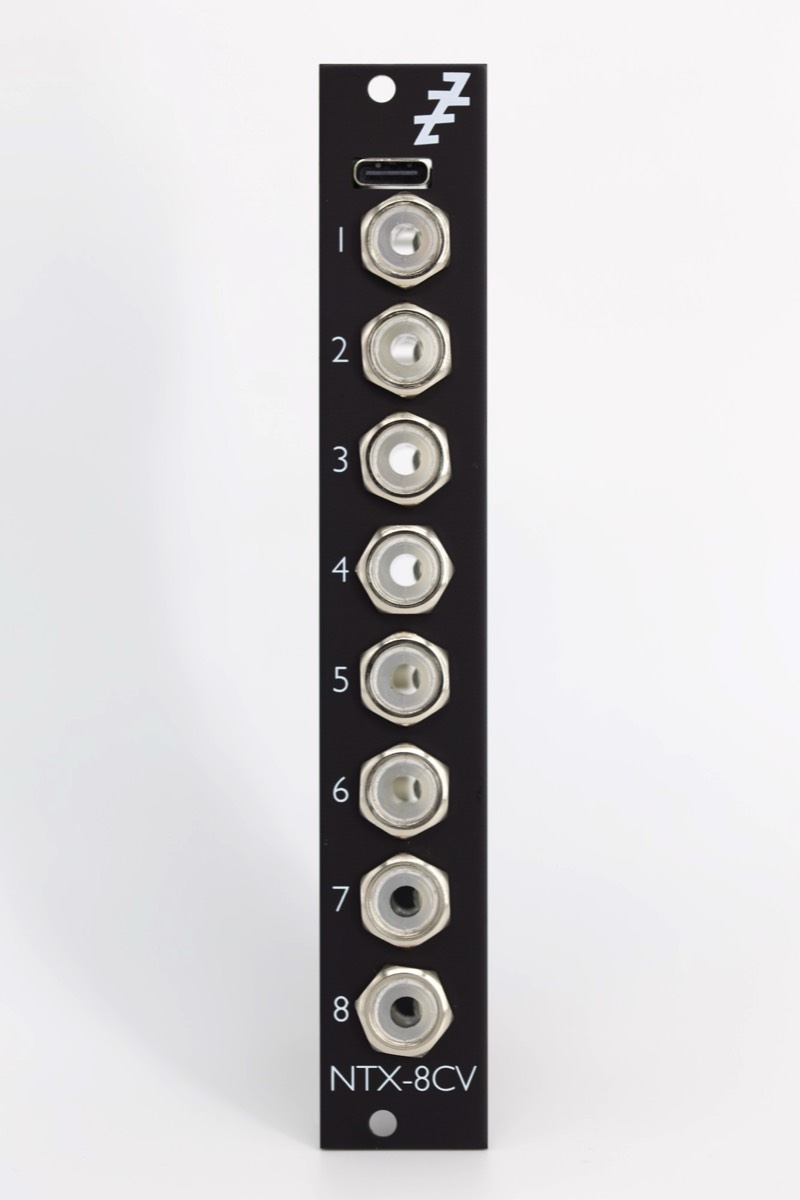

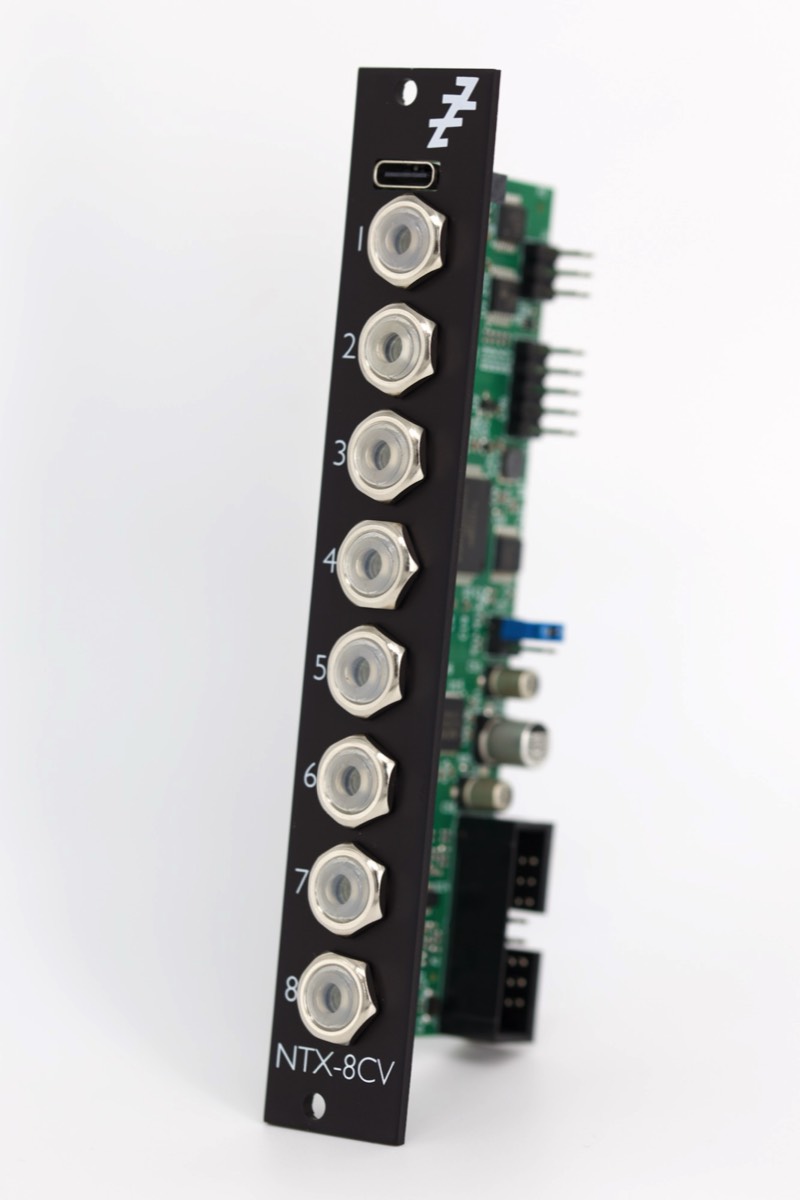

The NTX-8CV is a 4HP Eurorack module with three quite distinct purposes.
USB MIDI to CV converter
The NTX-8CV offers MIDI/CV conversion, using a design based on our best-in-class FH-2, but in a more compact form factor.
Its dual role USB port allows the NTX-8CV to operate both as a USB MIDI Class compliant device (e.g. connected to a computer or tablet) and as a USB host (so you can plug a USB MIDI controller straight in).
Its dual role USB port allows the NTX-8CV to operate both as a USB MIDI Class compliant device (e.g. connected to a computer or tablet) and as a USB host (so you can plug a USB MIDI controller straight in).
USB audio/CV interface
The NTX-8CV operates as a USB Audio Class compliant device, offering 8 channels of DC coupled audio or CV outputs (and so is compatible with Silent Way, CV Tools, Bitwig Studio etc.).
disting NT output expander
The NTX-8CV connects directly to a disting NT, adding 8 CV outputs. Additional NTX-8CV units can be daisy-chained for up to 64 extra CV outputs (on top of the NT's own 8).
Specifications
The NTX-8CV's specifications are as follows:
For more detail, please see the FAQ below or the user manual.
- Panel width: 4HP
- Module depth: 36mm
- Current draw: 74mA on the +12V rail, 17mA on the -12V rail
- Plus any current drawn by an attached USB device
- Outputs: 8, DC coupled
- USB: Type C, Dual Role (host or device)
- PCB headers:
- Input from disting NT
- Output to further expanders
For more detail, please see the FAQ below or the user manual.
FAQ
The NTX-8CV supports a number of different use cases, by itself or in combination with other modules. This FAQ is an attempt to clarify the possibilities. If your question is not covered here, please ask (contact links are at the bottom of the page).
- Can NTX-8CVs be daisychained when used for USB audio?
- No.
- When used for USB audio, does the NTX-8CV actually output true audio or is it only useful for CVs?
- It's actually audio.
- What are the USB audio specifications?
- The NTX-8CV supports 32 bit audio at up to 96kHz.
- Can NTX-8CVs be daisychained when used for USB MIDI/CV conversion?
- No.
- Does the NTX-8CV provide power to a connected USB MIDI device?
- Yes.
- Can the NTX-8CV be expanded with other Expert Sleepers expansion modules, for example the FHX-8CV?
- No.
- Can the NTX-8CV provide inputs, or is it only outputs?
- Only outputs.
- Can the NTX-8CV output gates, or only CVs?
- Both. When we say "CV" we mean all manner of output voltages, of which gates are simply a subset.
- Can the NTX-8CV be used to expand other modules with an ES-5 connection e.g. the ES-8, ES-9?
- Not currently. While technically possible, it will require an update to the encoding software (e.g. Silent Way).
- When used as a disting NT expander, are the outputs capable of audio, or just CVs?
- Currently just CVs. A beta firmware is in the works supporting audio, which can be downloaded from our Discord server.
- Can the NTX-8CV be used at the same time as an ES-5 when expanding a disting NT?
- Yes. The ES-5 connects to the NTX-8CV's daisychain output.
- Can the NTX-8CV's USB functionality (audio, MIDI/CV) be used at the same time when it's being used as a disting NT expander?
- Yes. You can choose which outputs to assign to each task (requires disting NT firmware v1.18).
- Can I use the NTX-8CV as a USB MIDI host and use it to play/control a disting NT?
- No. There's no communication from the NTX-8CV back to the disting NT.
- Is a 1U version forthcoming?
- There's a 1U panel adaptor.
In the box
Included in the box are:
A USB cable is not included.
- one NTX-8CV module
- one power cable (16 way, indexed)
- one 10-way ribbon cable for connection to a disting NT or another NTX-8CV.
A USB cable is not included.
Pricing & Availablity
The NTX-8CV is available now.
MSRP: UK £179 (inc VAT), US $219 (exclusive of sales tax), EU €172.25 (exclusive of VAT)
For purchasing links, please see where to buy.
MSRP: UK £179 (inc VAT), US $219 (exclusive of sales tax), EU €172.25 (exclusive of VAT)
For purchasing links, please see where to buy.
