Introduction

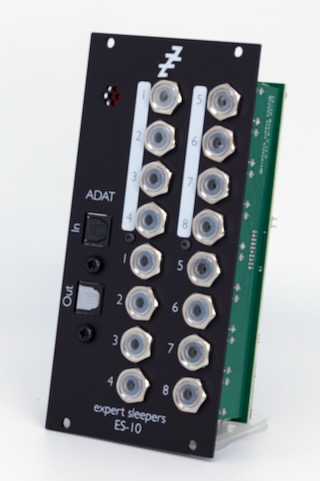

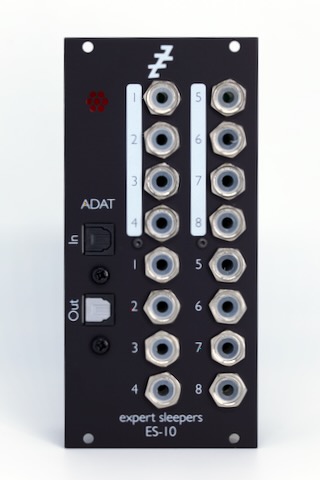

The ES-10 is a Eurorack 8-in/8-out ADAT interface, with DC-coupled inputs and outputs that can be used for both audio and CVs.
Each input can be individually selected for modular or line level operation.
The outputs can be expanded via the ES-5 module.
The ES-10 uses AKM 'VELVET SOUND' DACs and ADCs and low noise audio op-amps for the best possible sound quality.
Please note: the ES-10 cannot be used without an ADAT input connection (from the ADAT output port of your audio interface).
Each input can be individually selected for modular or line level operation.
The outputs can be expanded via the ES-5 module.
The ES-10 uses AKM 'VELVET SOUND' DACs and ADCs and low noise audio op-amps for the best possible sound quality.
Please note: the ES-10 cannot be used without an ADAT input connection (from the ADAT output port of your audio interface).
Specifications
The ES-10's specifications are as follows:
For more detail, please see the user manual.
- Panel width: 12HP
- Module depth: 35mm (including power cable)
- Current draw: 132mA on the +12V rail, 90mA on the -12V rail
- Inputs:
- 8x 3.5mm TS jacks
- DC or AC coupled
- Modular or line level
- Maximum voltage ±12V
- Outputs:
- 8x 3.5mm TS jacks
- DC coupled
- Maximum voltage ±11V
- Expansion header
- One for the ES-5
For more detail, please see the user manual.
Pricing & Availablity
The ES-10 is available now.
MSRP: UK £329 (inc VAT), US $359 (exclusive of sales tax), EU €324.17 (exclusive of VAT)
For purchasing links, please see where to buy.
MSRP: UK £329 (inc VAT), US $359 (exclusive of sales tax), EU €324.17 (exclusive of VAT)
For purchasing links, please see where to buy.
